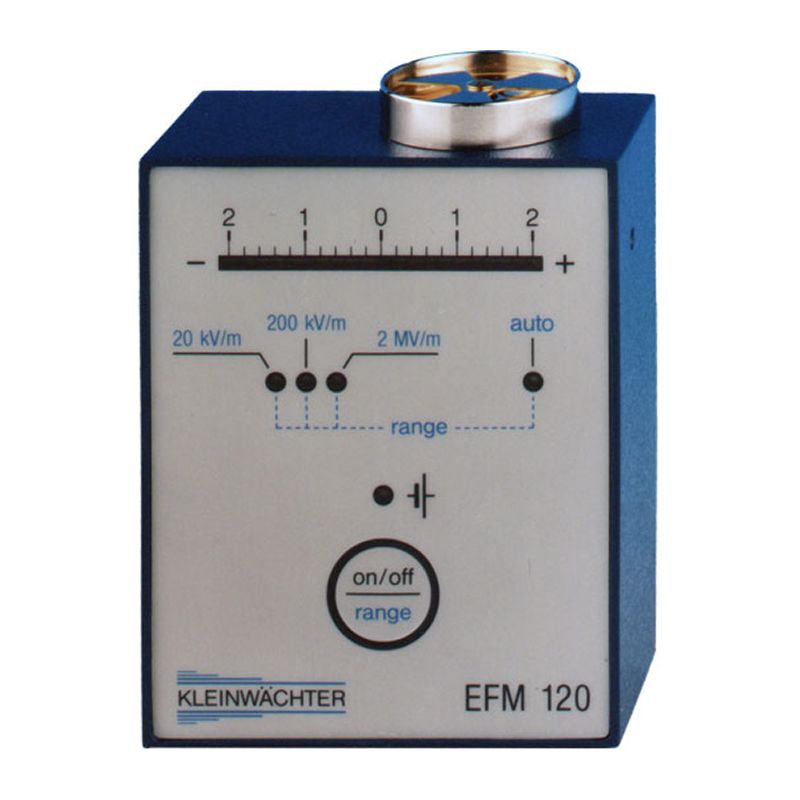

EFM 120

Small and handy electro field meter with 21 figure LED row with smooth transition. This provides a scale-reading precision of approx. 5%.

Special features:

Solid aluminium housing

LED bargraph, thereby high scale-reading precision

Zero point with green LED

Built-in NiMH storage battery with permanent charging supervision

Analog writer output ± 1V for data recording

Easy appliance and maintenance Walking Test according to DIN 61340-4-5 Together with the optional pico software, the hand-held electrode and the gage head MK11 S2 a walking test according to DIN 61340-4-5 can be performed. Specifications: Measuring range: ± 20 kV/m, ± 200 kV/m, ± 2 MV/m Dimensions: 100mm x 80mm x 38mm (l x w x h) Weight: Approx. 370g Writer output: ± 1V / Ri >1k? Scope of delivery

Transport case with conductive foam interior

Built-in 7,2V NiMH – Akku

Mains adapter 230V~ / 50Hz

Grounding cable with alligator clip

Measuring line to connect the writer output

Manual

Declaration of calibration
