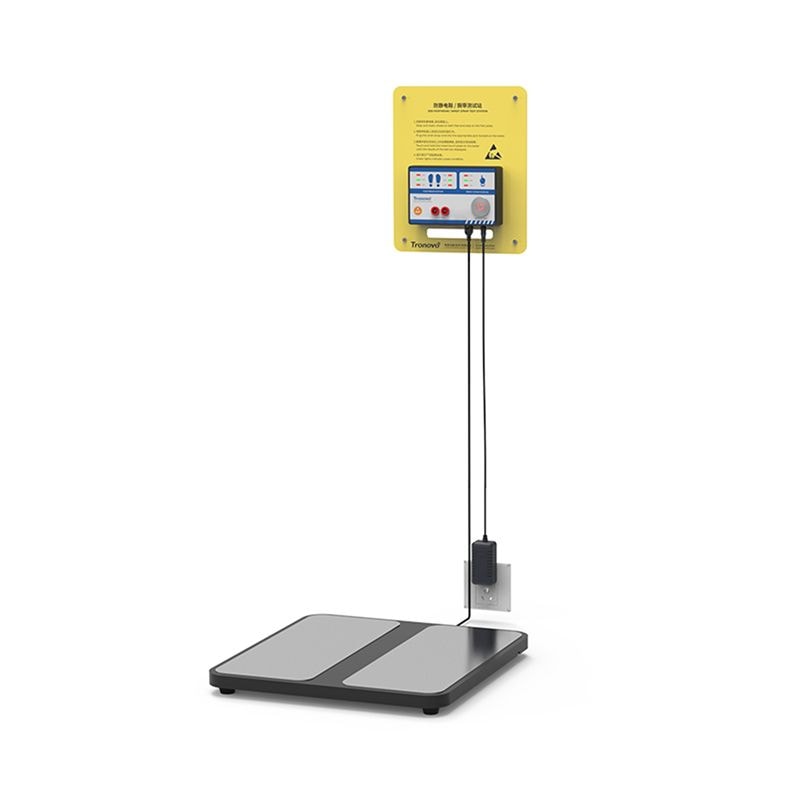

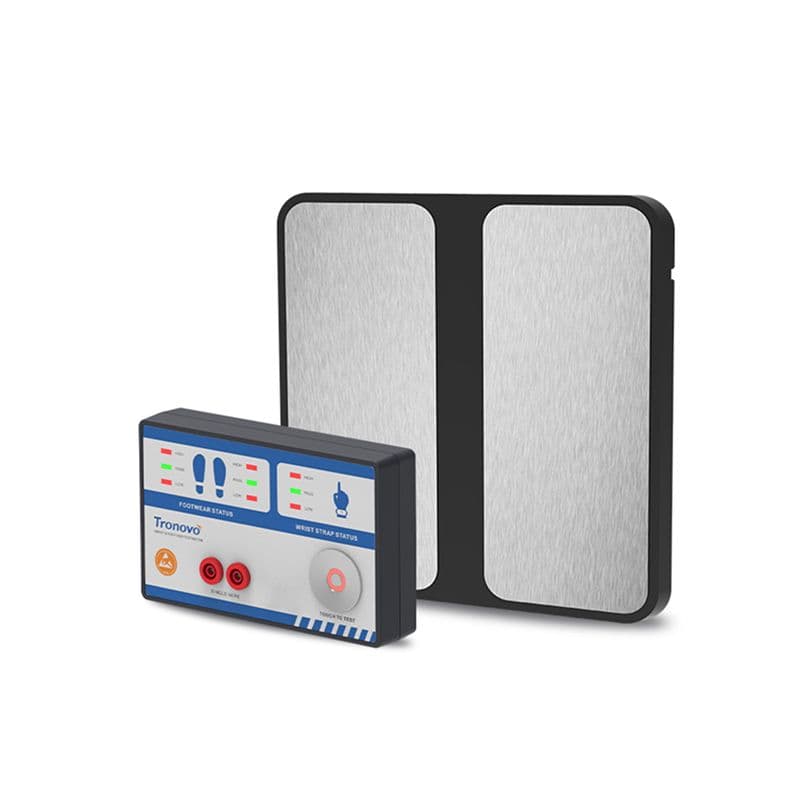

Human Body Integrated Testers (M321A / M321C / M321E)

The human body comprehensive tester is a personnel grounding tester, which accurately tests the wrist strap and anti-static shoes (foot ring) of ESD protection zone (EPA) personnel according to IEC 61340-5-1 (European standard), ANSI ESD S20.20 (American standard), SJ/T 10694 (electronic industry standard) and GJB3007A (military standard).

Features:

• Tests Operator’s Path-To-Ground; Wrist Strap Limits 750 kilohms to 10 megohms, Footwear Limits 750 kilohms to 1000 megohms • Simultaneous Testing of Wrist Strap and Footwear in Less Than 3 Seconds • Split Foot Plate for Testing Foot Grounders (or ESD Shoes) • Relay for Use with Automatic Doors or Other Locking Systems • Solid-State Test Switch with No Moving Parts • Optional Stand • Compatibility with ESD Glove Test Fixture • Calibration Verification • 3 sets of high-brightness LED status indicators to indicate high/pass/low resistance for wrist strap, left shoe, and right shoe • Supports single and two-wire wrist strap measurements, and provides dual interfaces to improve the life of the plug and dial • Test the pedal independently with both feet, and the left and right shoe tests are done at one time
