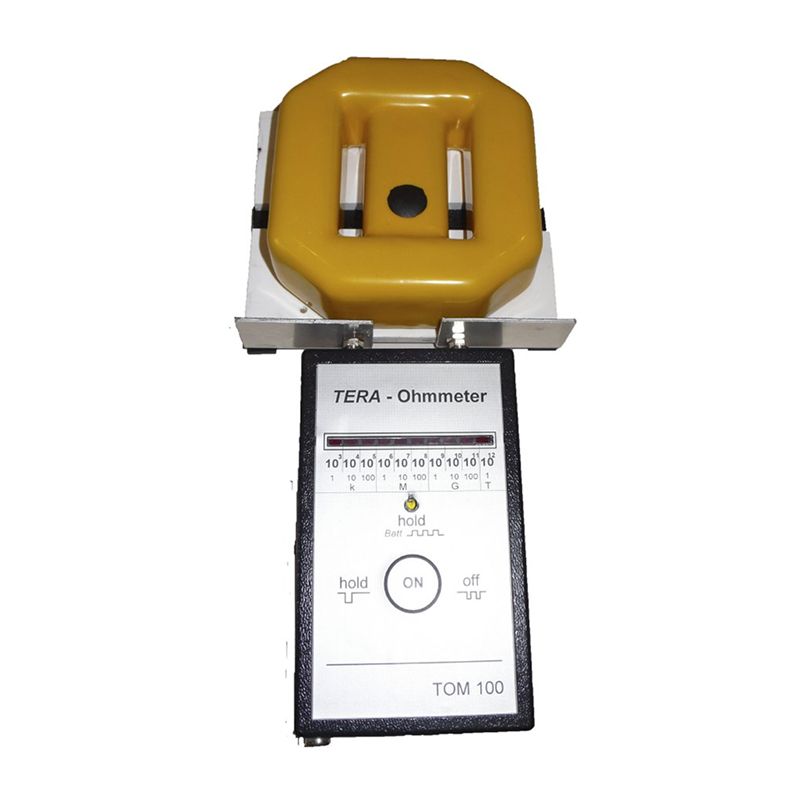

TERA Ohmmeter TOM 100

With our TERA -Ohmmeter TOM 100 you getz a low cost Instrument to test the surface ristance from Floor – and Table materials.

The measure electrode is a 100mm x 100mm plastic plate with aluminum angle with conductive rubber strips in distance from 100mm.

With the TOM 100 can easily be made reproducible measurements, standard-compliant measurements are possible with the TOM 600 / TOM 610 from our house.

The TOM 100 measures surface and leakage resistance from 10 3 Ohm up to 10 12 Ohm.

The result is diplayed by 10 LEDs.

The measure voltage is 100V

The internal resistance is 100kΩ, this is why a switchover of the measuring voltage is not required!

With the included measuring electrode with additional 2 kg weight you can executed at any time reproducible measurements.
