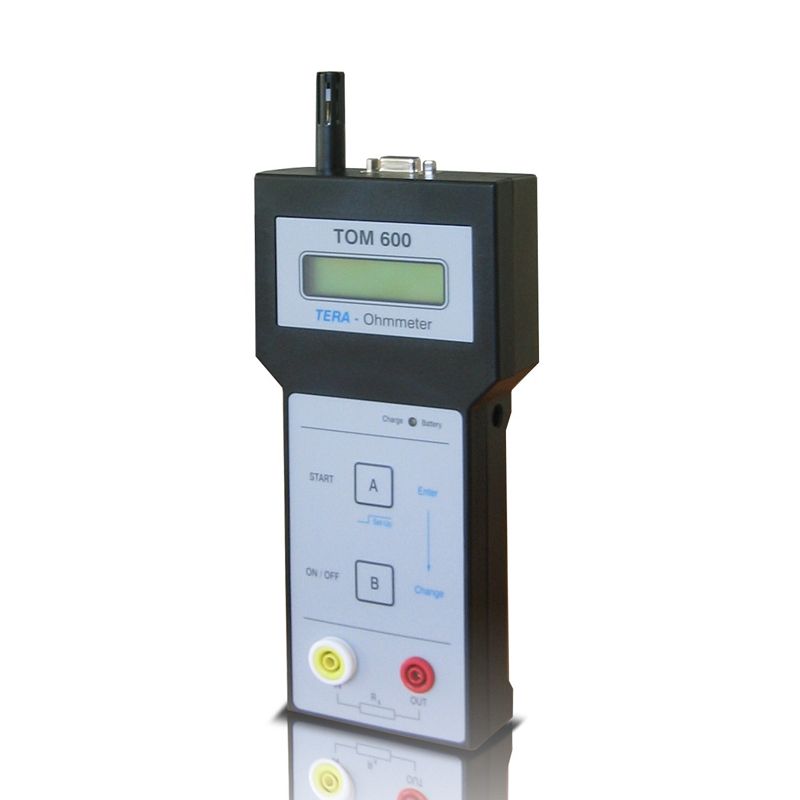

TERA Ohmmeter TOM 600

The TERA – Ohm Meter TOM 600 works with the current-voltage measuring process.

To the adaptation to international norms (IEC) EN, DIN, VDE i.e.) you can select the measuring time with an internal timer. The measuring voltage can be selected automatically or manually.

An internal EEPROM memory can save up to 30 measured values. With an Excel software you can read out and control the TOM 600.

Measuring range 10 kΩ… 2 TΩ ( 10 4 ….10 12 Ω) tolerance: ± 1 x 10 n

Measuring voltages < 200kΩ = 10V > 200kΩ = 100V

Specifications

Power supply: 4 pc. AA cells, 2100mAh. (permanent supervised) operating time approx. 6h with fully charged cells, external with mains adapter 9V DC / 300mA Charging time: max. 14h Power comsumption: max. 100mA Auto Switch Off: approx. 5min after the measurement, when no button pressed Scope of delivery TOM-600

Mains adapter 230V~ / 50Hz – 9V DC / 300mA

4 pc. AA Mignon NiMH cells

2 pc. teflon isolated measurement strips 1m each, with 4mm banana plugs

serial pc USB

software on CD

manual Additional scope of delivery TOM-600 ME

2 pc. measurement electrodes 2,5 kg according to EOS/ESD-S4.1 and S7.1

1 pc. teflon isolated measurement strip 5m instead of 1 pc. teflon isolated measurement strip 1m with 4mm banana plugs
